Hanwha Swiss CNC Lathes for Small-Diameter Production Parts
Pro Products LLC uses Hanwha Swiss CNC lathes to produce small-diameter precision parts with repeatable accuracy, efficient cycle times and stable output across high-volume machining programs. Our Wisconsin facilities use sliding headstock Swiss machining for aerospace, medical, defense, firearms, industrial and other high-spec manufacturers needing detailed components and dependable production flow.
Swiss CNC Machining Equipment for High-Volume Small Parts

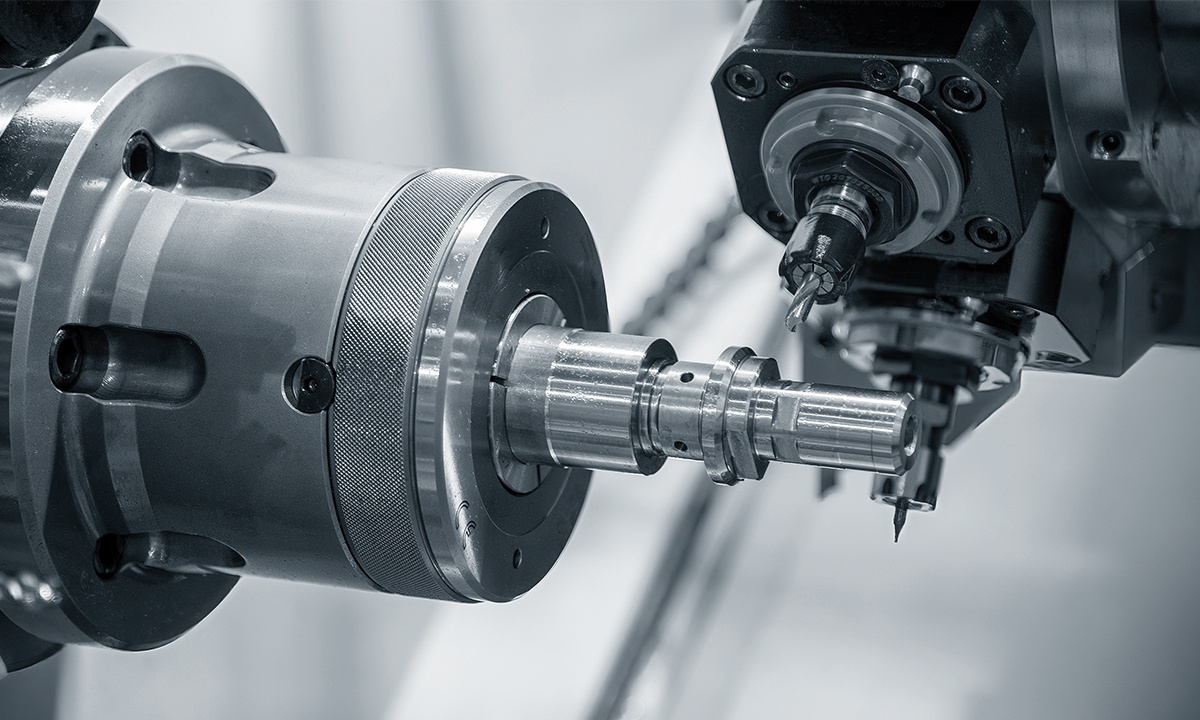

Swiss CNC lathes help Pro Products LLC machine small, slender and detailed parts close to the cutting tool for improved stability and feature control. With Hanwha sliding headstock lathes and multi-axis cutting capability, our team can produce precision components with turned features, milled details, cross-holes, threads and tight dimensional requirements across repeat production runs.
- Power: 5 Hp
- Max Spindle Speed: 10,000 RMP
- Features: 2 Path Seven Cutting Axes
- Power: 5 Hp
- Max Spindle Speed: 10,000 RMP
- Features: 2 Path Seven Cutting Axes
- Power: 5 Hp
- Max Spindle Speed: 10,000 RMP
- Features: 2 Path Seven Cutting Axes
- Machine Type: 5-axis CNC Swiss lathe
- Best Fit: Complex, precision small-diameter components
- Production Style: Bar-fed for high-volume, unattended production
- Bar Feeder: EdgeTech Patriot 338 12'
- Maximum Machining Diameter: Ø38 mm (1.50")
- Spindle Speed: 6,500 RPM main and sub-spindles
- Control: 5-axis / 2-channel CNC control
- Axis Control: Full C-axis control on main and sub-spindles
- Z-Axis Stroke: 12.6"
- Driven Tooling: Multiple driven tooling stations for milling, drilling and tapping
- Front Drilling Capacity: Up to Ø13 mm
- Tapping Capability: Up to M12 × 1.75
- Guide Bushing: Rotary guide-bushing capability
- Machine Type: 5-axis CNC Swiss lathe
- Best Fit: Complex, high-precision small-diameter components
- Production Style: Bar-fed for high-volume, unattended production
- Bar Feeder: EdgeTech Patriot 338 12'
- Maximum Machining Diameter: Ø35 mm (1.38")
- Spindle Speed: 8,000 RPM main and sub-spindles
- Axis Control: Full C-axis control on main and sub-spindles
- Z-Axis Stroke: 12.6"
- Machining Capability: 5-axis simultaneous machining
- Driven Tooling: Multiple driven tooling stations for milling, drilling and tapping
- Drilling Capacity: Up to 13 mm
- Tapping Capability: Up to M12 × 1.75
