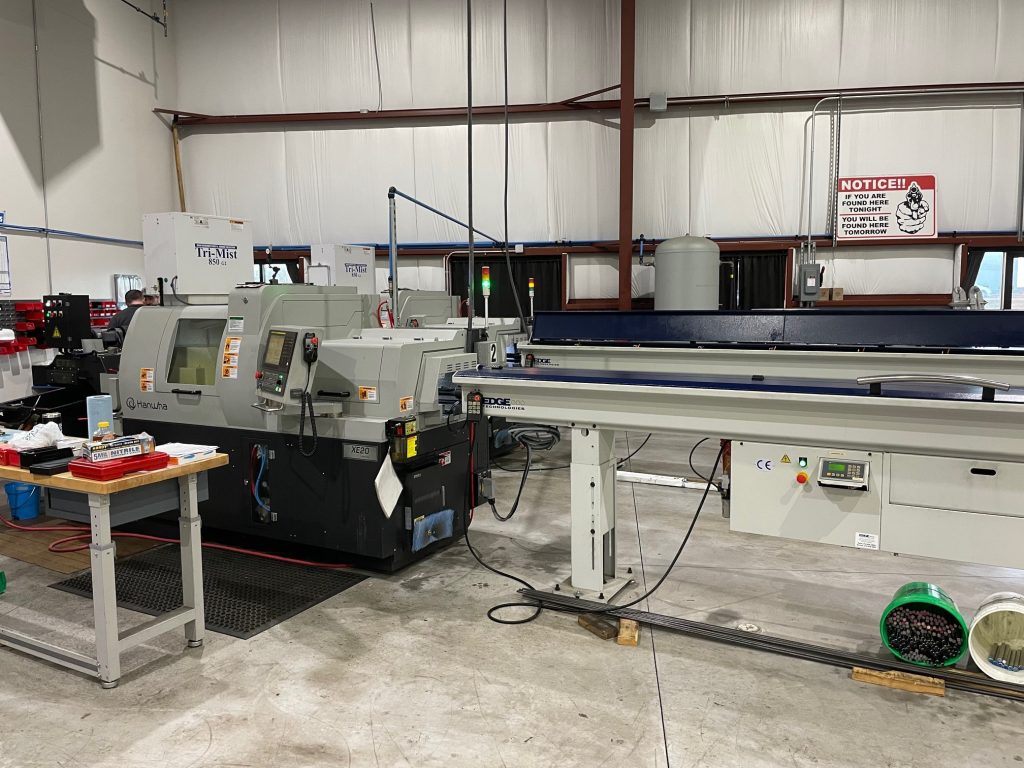

Hanwha Sliding Headstock Swiss CNC Lathe
Hanwha Sliding Headstock Swiss CNC Lathe
Machine Type:
5-axis CNC Swiss lathe
Best Fit:
Complex, precision small-diameter components
Production Style:
Bar-fed for high-volume, unattended production
Bar Feeder:
EdgeTech Patriot 338 12'
Maximum Machining Diameter:
Ø38 mm (1.50")
Spindle Speed:
6,500 RPM main and sub-spindles
Control:
5-axis / 2-channel CNC control
Axis Control:
Full C-axis control on main and sub-spindles
Z-Axis Stroke:
12.6"
Driven Tooling:
Multiple driven tooling stations for milling, drilling and tapping
Front Drilling Capacity:
Up to Ø13 mm
Tapping Capability:
Up to M12 × 1.75
Guide Bushing:
Rotary guide-bushing capability
